In this notebook we explore a time series of Toronto temperatures, fit a model under the Box-Jenkins framework and evaluate its performance in an 80 day in-sample forecast. Data is gathered from https://climate.weather.gc.ca/ and steps on how to obtain it are outlined below. The purpose of this analysis is an exercise in model fitting; an application of the Box-Jenkins framework. Weather is a very complex phenomena and to model it accurately requires far more comprehensive a report than what is delivered here. Instead, this notebook focuses on the progression of a traditional Box-Jenkins analysis (which can be taken and applied to other ARMA models), and serves as a jumping off point into weather analysis.

Sections

Gathering Data
Exploratory Analysis
Assessing Stationarity
Model Fitting
Forecasts & Perfornamce

References

Time Series Analysis by Cryer and Chan (https://www.springer.com/gp/book/9780387759586)

1. Gathering Data

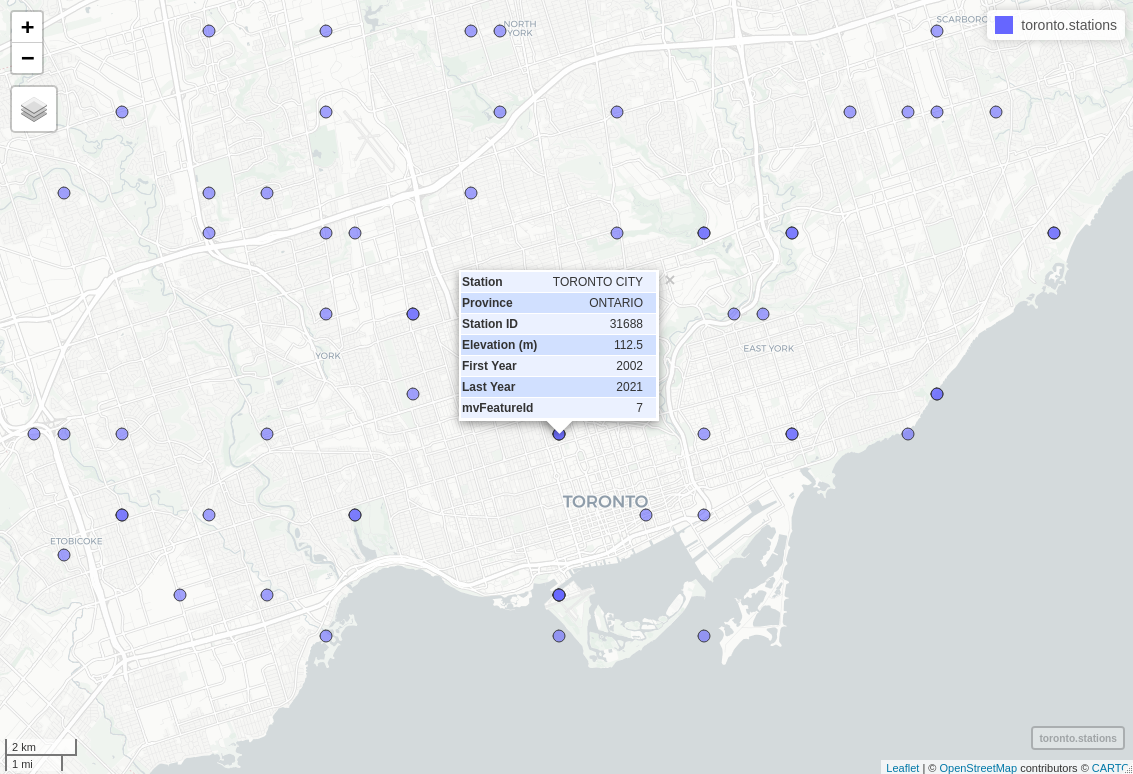

To begin the analysis we require daily historical temperature data. The Government of Canada provides an abundance of temperature records for most major cities across Canada, and can be explored at https://climate.weather.gc.ca/historical_data/search_historic_data_e.html. In spite of the large number of records, station data is rather unorganized and data for certain stations can range anywhere from hourly temperatures between 1953-1969 to monthly temperatures between 1840-2006. Since a group of stations within a particular region is not likely to have data that matches for a specified time frame we pick a single station and base our analysis using only its data. Documenation on data retrieval is provided by the Government of Canada here https://drive.google.com/drive/folders/1WJCDEU34c60IfOnG4rv5EPZ4IhhW9vZH which contians a csv with geographical station information. Since it has clean records of recent data and is in close proximity to downtown Toronto, we opt for the Toronto City station (ID: 31688) for our analysis.

Drawing

The documentation located in the google drive above also provides a simple bash script to retrieve the weather data. After a slight modification, the following can be used to gather the data:

#!/bin/bash
for year in `seq 2002 2021`
do
    wget -O "${year}_daily_temperature_31688.csv" "https://climate.weather.gc.ca/climate_data/bulk_data_e.html?format=csv&stationID=31688&Year=${year}&Month=1&Day=14&timeframe=2&submit= Download+Data"
done

which will create 20 separate csv files, each of whom contain daily weather data for their respective year. To avoid having to merge each file using R we can append their contents to a single file containing all year’s data using shell

head -n 1 2002_daily_temperature_31688.csv > 2002_2021_daily_temps.csv && tail -n+2 -q *.csv >> 2002_2021_daily_temps.csv

2. Exploring Data

Before we begin exploratory analysis we outline which data will be used. The commands above curate roughly 20 years worth of data, of which, we focus on the most recent 5 years. Each file contains a series of weather related fields (precipitation, wind speeds, etc.) and we will be focusing on mean daily temperature. Data is partitioned into training/test sets (95/5 split), where the training set is used to fit our model and the test set to provide in-sample forecasting results.

# some useful packages
library(ggplot2)
library(lubridate)
library(dplyr)
library(astsa)
library(TSA)
library(glue)
library(gdata)
library(tseries)
library(forecast)
library(Metrics)
library(gridExtra)
options(repr.plot.width=15, repr.plot.height=8)

weather_data <- read.csv('data/2002_2021_daily_temps.csv', header=TRUE)   # read data
names(weather_data)[c(1, 2, 10, 12, 14)] = c('longitude',
                                             'latitude',
                                             'max.temp',
                                             'min.temp',
                                             'mean.temp')
temp_data <- weather_data[c(5, 6, 7, 8, 10, 12, 14)] # only keep temperatures
temp_data$Date.Time <- as.Date(temp_data$Date.Time, format="%Y-%m-%d")
temp_data$Month <- month.abb[temp_data$Month]
start <- as.Date('2017-01-01', format('%Y-%m-%d'))
end <- as.Date('2021-05-07', format('%Y-%m-%d'))
working_temps <- temp_data[temp_data[, 1] >= start & temp_data[, 1] <= end, ]

As with any dataset, there will be some inconsistencies in the data and the first thing we want to check for is missing records. Below we locate 34 days missing mean temperatures and rather than manually looking up 34 seperate days from other sources of weather data we will linearly interpolate to fill in these dates.

working_temps[!complete.cases(working_temps),] # identify missing (NA) mean temps

A data.frame: 34 × 7
	Date.Time	Year	Month	Day	max.temp	min.temp	mean.temp
	<date>	<int>	<chr>	<int>	<dbl>	<dbl>	<dbl>
5544	2017-03-06	2017	Mar	6	4.9	NA	NA
5580	2017-04-11	2017	Apr	11	NA	11.3	NA
5617	2017-05-18	2017	May	18	NA	18.4	NA
5621	2017-05-22	2017	May	22	NA	NA	NA
5622	2017-05-23	2017	May	23	21.8	NA	NA
5628	2017-05-29	2017	May	29	NA	14.7	NA
5637	2017-06-07	2017	Jun	7	NA	NA	NA
5782	2017-10-30	2017	Oct	30	NA	5.9	NA
5790	2017-11-07	2017	Nov	7	NA	4.0	NA
5810	2017-11-27	2017	Nov	27	NA	1.3	NA
5903	2018-02-28	2018	Feb	28	NA	5.1	NA
5904	2018-03-01	2018	Mar	1	NA	NA	NA
5905	2018-03-02	2018	Mar	2	NA	-0.5	NA
5906	2018-03-03	2018	Mar	3	NA	NA	NA
5907	2018-03-04	2018	Mar	4	NA	-3.1	NA
5908	2018-03-05	2018	Mar	5	NA	NA	NA
5909	2018-03-06	2018	Mar	6	NA	-1.4	NA
5943	2018-04-09	2018	Apr	9	NA	-3.6	NA
6002	2018-06-07	2018	Jun	7	NA	NA	NA
6037	2018-07-12	2018	Jul	12	NA	NA	NA
6038	2018-07-13	2018	Jul	13	30.6	NA	NA
6039	2018-07-14	2018	Jul	14	NA	NA	NA
6040	2018-07-15	2018	Jul	15	30.9	NA	NA
6041	2018-07-16	2018	Jul	16	NA	NA	NA
6153	2018-11-05	2018	Nov	5	NA	NA	NA
6194	2018-12-16	2018	Dec	16	NA	NA	NA
6195	2018-12-17	2018	Dec	17	NA	NA	NA
6314	2019-04-15	2019	Apr	15	NA	NA	NA
6443	2019-08-22	2019	Aug	22	NA	NA	NA
6567	2019-12-24	2019	Dec	24	NA	NA	NA
6588	2020-01-14	2020	Jan	14	NA	NA	NA
6797	2020-08-10	2020	Aug	10	NA	NA	NA
6875	2020-10-27	2020	Oct	27	NA	NA	NA
6876	2020-10-28	2020	Oct	28	NA	NA	NA

# split the dataset into train/test (95/5)
ndays <- length(working_temps$Year) # number of days, 1588
working_temps$mean.temp <- round(approx(1:ndays, working_temps$mean.temp, n=ndays)$y, 1) # linearly interpolate missing dates
split <- floor(ndays*0.95)
train <- working_temps[1:split, ]
test <- working_temps[(split+1):ndays, ]

Seasonality

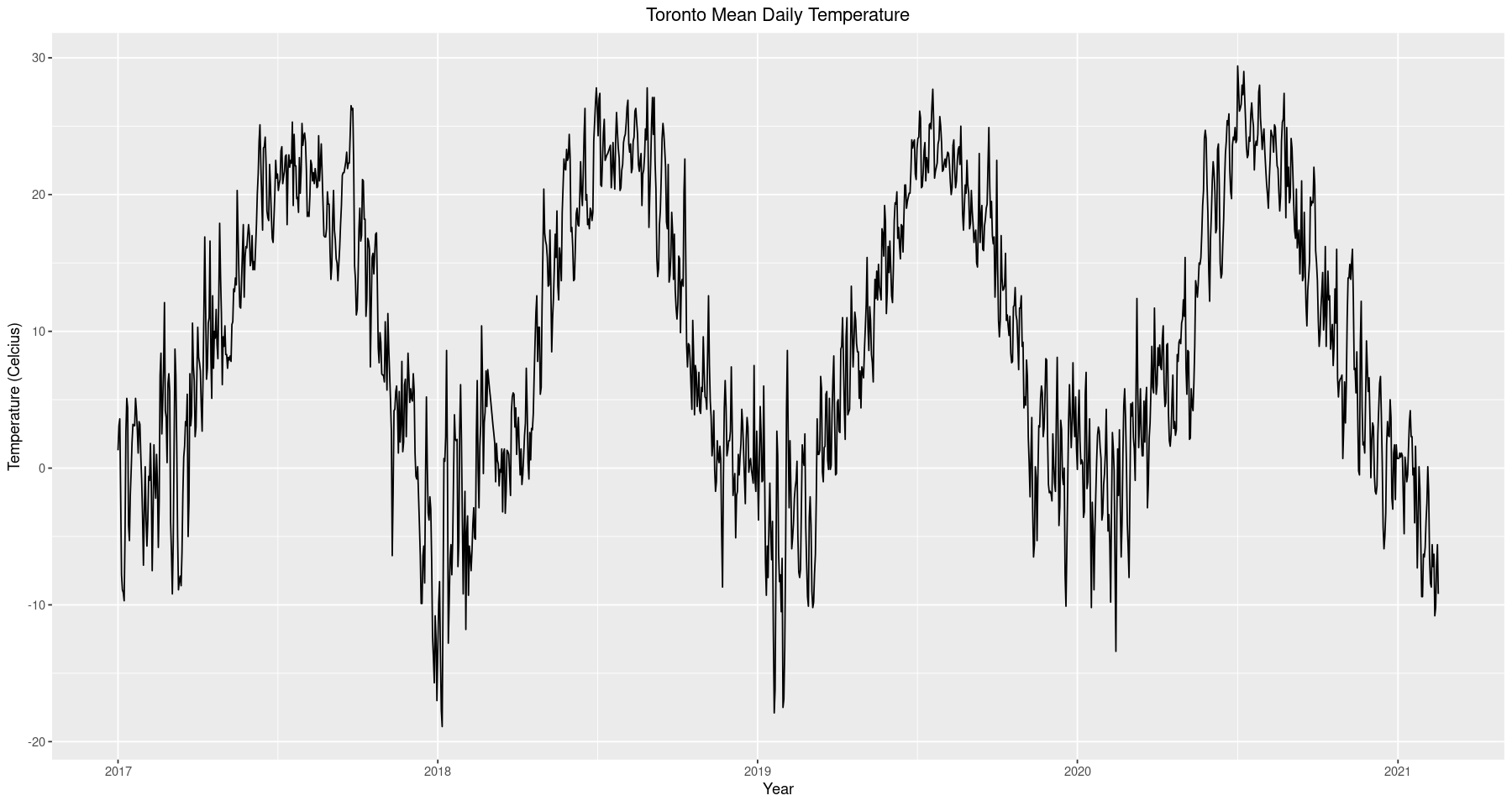

The first thing to notice from the time series is that there appears to be seasonality in the data. Of course this makes sense given that we are looking at temperature data, however, there is some subtlety in what we are observing. In the context of time series analysis, seasonality refers to an autoregressive influence that occurs periodically. For example, had we performed this analysis on monthly data it would make sense that the temperature in Jan 2020 would be a good indicator of the temperature in Jan 2021, hence we would expect to fit a seasonal model whose autoregressive influence occurs every 12 months. However, it does not seem reasonable to expect that the temperature on Jan 01, 2020 will be a good indicator of the temperature on Jan 01, 2021. This is somewhat unintuitive, proceeding with a nonseasonal model for what we know is a seasonal phenomena, but we will see how we can exploit this feature later on in the analysis. For now we continue exploratory analysis and develop an intuition for modeling.

ggplot(data=train, aes(x=Date.Time, y=mean.temp)) +
        geom_line() +
        ggtitle('Toronto Mean Daily Temperature') +
        xlab('Year') + ylab('Temperature (Celcius)') +
        theme(plot.title = element_text(hjust = 0.5))

png

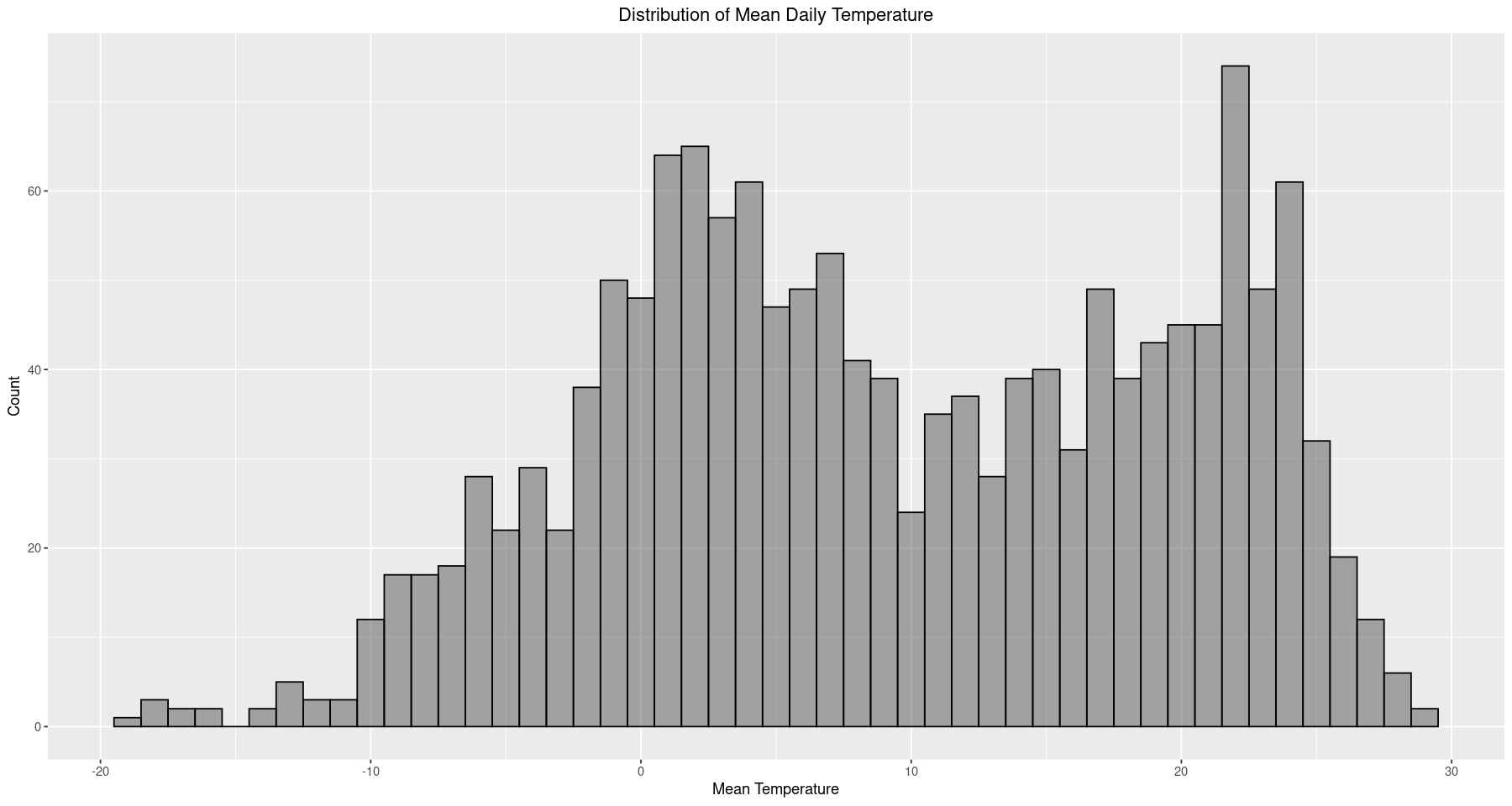

ggplot(data=train, aes(x=mean.temp)) +
        geom_histogram(binwidth=1, alpha=0.5, color='black') +
        ggtitle('Distribution of Mean Daily Temperature') +
        xlab('Mean Temperature') + ylab('Count') +
        theme(plot.title = element_text(hjust = 0.5))

png

The purpose of this analysis is to apply the Box-Jenkins framework and fit an ARMA model to the time series, which requires stationary data. As we noted earlier, the data seems to have some seasonality in it. For instance, we see below that every year, between June and August, temperature will be a lot higher than in the other months. This is to be expected, since we know the summer is the warmest time of the year, but it still presents a problem in that seasonality means the data is not stationary. Even though this observation is well founded, it’s good practice to reinforce our argument statistically and assess the technical aspects of our conjecture.

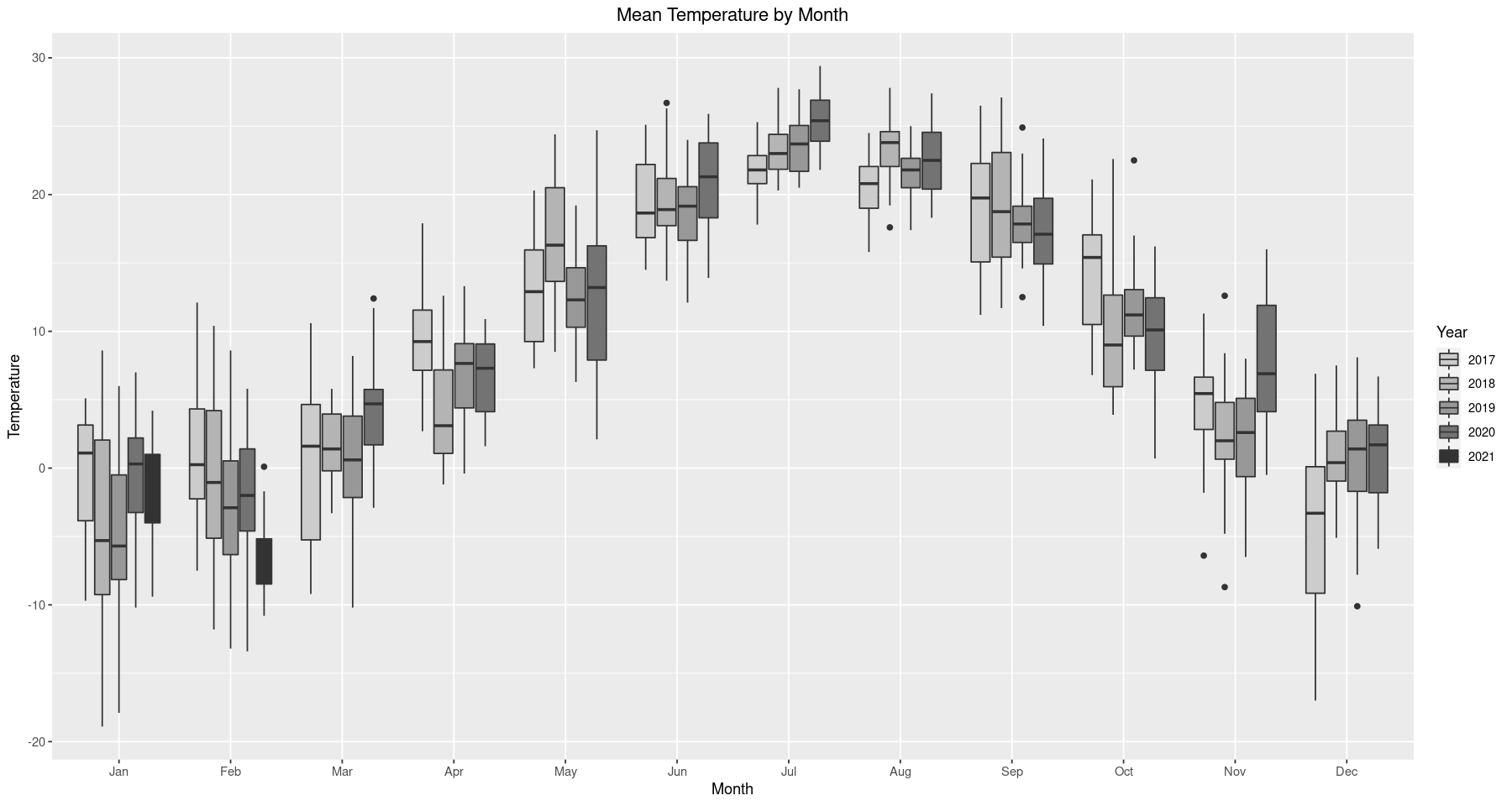

ggplot(train) + geom_boxplot(aes(x=factor(Month, levels=month.abb), y=mean.temp, fill=as.character(Year))) +
                scale_fill_grey(start = 0.8, end = 0.2) +
                ggtitle('Mean Temperature by Month') +
                xlab('Month') + ylab('Temperature') +
                theme(plot.title = element_text(hjust = 0.5)) + labs(fill='Year')

png

3. Assessing Stationarity

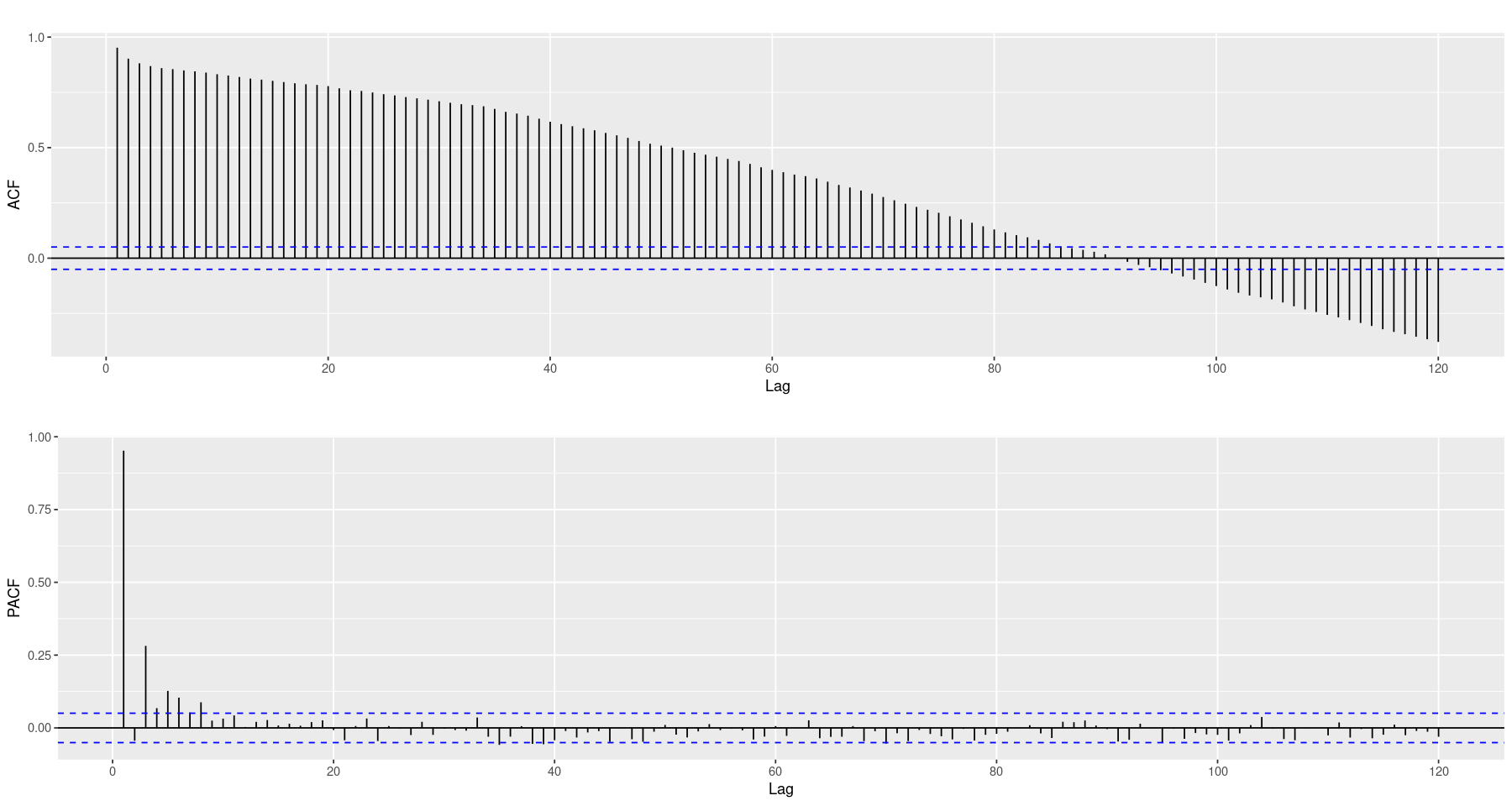

To assess stationarity, the first thing we consider is autocorrelation. The ACF plot (top) decays very slowly and the Partial ACF (bottom) has significant lags that appear to decay as well, rather than a distinct cut-off. Both plots exhibit strong indicators that the data is not stationary. In addition, we employ the Augmented Dickey-Fuller (ADF) test to eliminate the possibility that our nonstationarity conjecture is actually wrong. There is plenty of reason to think this will not be the case, hence we expect to observe an insignificant p-value. However, we will remain cautious as insignificant test statistics do not conclude anything on their own, we will simply fail to reject the test’s null hypothesis (in our case, that the time series is not stationary). But given our experience of seasonal temperatures and the strong indicators of nonstationarity exhibited by the ACF and PACF tests we feel confident that the data is not stationary and proceed with fixing this.

acf <- ggAcf(train$mean.temp, lag.max=120) + ggtitle('')
pacf <- ggPacf(train$mean.temp, lag.max=120) + ggtitle('')
grid.arrange(acf, pacf, nrow=2)

png

adf.test(train$mean.temp)

Augmented Dickey-Fuller Test
​    data:  train$mean.temp
​    Dickey-Fuller = -2.1489, Lag order = 11, p-value = 0.5153
​    alternative hypothesis: stationary

As we expected, the test is not significant. Up to this point we have no reason to believe the data might be stationary but in order to apply the Box-Jenkins framework stationarity is a requirement. We discuss how to fix this below.

3. Model Fitting

Even though we will not move forward with a seasonal ARMA model, this seasonality remains an exploitable feature in our model. Recall that the time series exhibits a periodic progression, very similar to a cosine curve. In fact, we can extract the seasonality we observe by fitting a cosine model via least squares to represent the deterministic portion of the time series. After we remove this deterministic portion (by subtracting it away) we will be left with the stochastic portion which, if stationary, we can model under the Box-Jenkins framework. To proceed we fit the following model,

\[\mu_t = \beta \cos\left(\frac{2\pi t}{365} + \Phi\right)\]

Where 365 represents the period (yearly), $\beta$ the amplitude of the curve and $\Phi$ manages the origin of the curve. Fitting this curve is not straightforward because the parameters we need to estimate (in particular, $\Phi$) do not enter the equation linearly. However, we can take advantage of the following trigonometric identity

\[\cos(a+b) = \cos(a)\cos(b) - \sin(a)\sin(b)\]

That is, we take $a=2\pi t/365$ and $b=\Phi$ so that

$\begin{align} \mu_t &= \beta \cos\left(\frac{2\pi t}{365} + \Phi\right) \\ &= \beta \left(\cos\left(\frac{2\pi t}{365}\right)\cos\Phi - \sin\left(\frac{2\pi t}{365}\right)\sin\Phi\right) \\ &= \underbrace{\beta\cos\Phi}_{\beta_1}\cos\left(\frac{2\pi t}{365}\right) \underbrace{- \beta\sin\Phi}_{\beta_2}\sin\left(\frac{2\pi t}{365}\right)\\ &= \beta_1\cos\left(\frac{2\pi t}{365}\right) + \beta_2\sin\left(\frac{2\pi t}{365}\right) \end{align}$ Likewise, notice that $\beta_1^2+\beta_2^2 = \beta^2(\cos^2\Phi+\sin^2\Phi) = \beta^2\iff \beta = \sqrt{\beta_1^2+\beta_2^2}$ $\frac{\beta_1}{\beta_2} = -\frac{\sin\Phi}{\cos\Phi} = -\tan(\Phi)\iff \Phi = \tan^{-1}\left(\frac{\beta_1}{\beta_2}\right)$ which means we can determine $\mu_t$ by estimating $\beta_1, \beta_2$ using a linear regression in which $\cos\left(\frac{2\pi t}{365}\right)$ and $\sin\left(\frac{2\pi t}{365}\right)$ are our regressors (recall that linear regression requires the model be linear in the coefficients, not in the regressors). For more information see Chapter 3 (Trends) in Cryer & Chan’s Time Series Analysis.

# we take advantage of time series objects a lot in the
# analysis that follows, which allows us to specify
# a start date and a frequency.  Note that frequency
# is 365.25 because 2020 was a leap year.
temps_ts <- ts(train$mean.temp, start=c(2017, 1), f=365.25) # time series object
X <- harmonic(temps_ts, 1)          # matrix of harmonic regressors
x1 <- data.frame(X)$cos.2.pi.t      # predictor 1
x2 <- data.frame(X)$sin.2.pi.t      # predictor 2
cos_model <- lm(temps_ts ~ x1 + x2)
summary(cos_model)
train$cos_model <- as.double(fitted(cos_model))

    Call:
​    lm(formula = temps_ts ~ x1 + x2)
​
​    Residuals:
​         Min       1Q   Median       3Q      Max
​    -16.2120  -2.6323  -0.0664   2.8596  13.7209
​
    Coefficients:
                Estimate Std. Error t value Pr(>|t|)
    (Intercept)   9.8019     0.1063   92.19   <2e-16 ***
    x1          -12.1171     0.1489  -81.37   <2e-16 ***
    x2           -5.0628     0.1518  -33.36   <2e-16 ***
    ---
    Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1


Residual standard error: 4.125 on 1505 degrees of freedom
Multiple R-squared:  0.839,	Adjusted R-squared:  0.8387
F-statistic:  3920 on 2 and 1505 DF,  p-value: < 2.2e-16

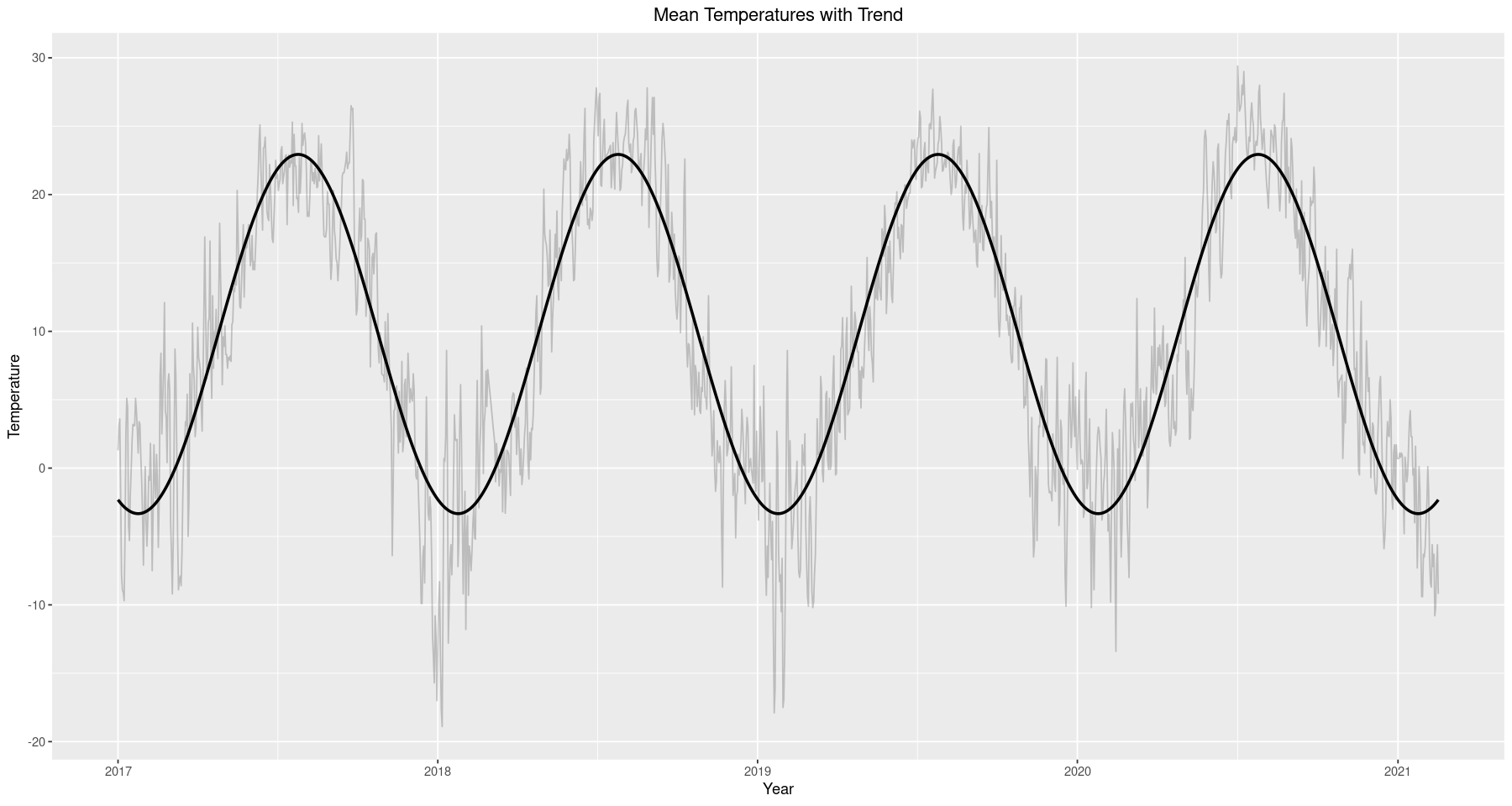

ggplot() + geom_line(data=train, aes(x=Date.Time, y=mean.temp), alpha=0.2) +
        geom_line(data=train, aes(x=Date.Time, y=cos_model), size=1, color=1) +
        ggtitle('Mean Temperatures with Trend') +
        xlab('Year') + ylab('Temperature') +
        theme(plot.title = element_text(hjust = 0.5))


png

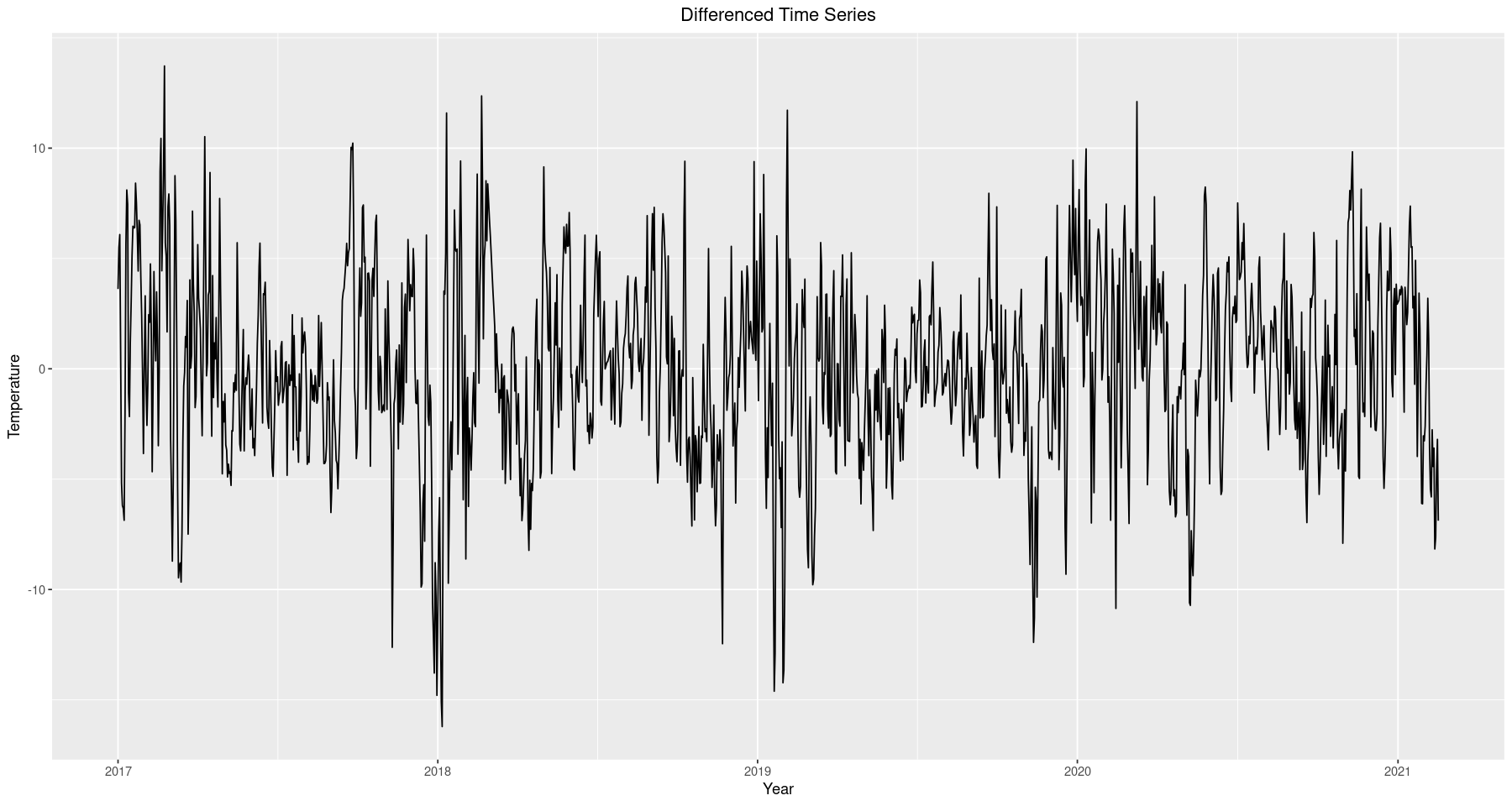

After fitting the cosine model to represent the deterministic portion we extract it by taking the difference between it and the original. The resulting time series appears to be random noise, which we can confirm is stationary with a significant p-value in the ADF test below.

train$diff_model <- train[, 7] - train[, 8]  # difference between cos and original
ggplot(data=train, aes(x=Date.Time, y=diff_model)) + geom_line() +
        ggtitle('Differenced Time Series') +
        xlab('Year') + ylab('Temperature') +
        theme(plot.title = element_text(hjust = 0.5))

png

adf.test(train$diff_model)

Warning message in adf.test(train$diff_model):
"p-value smaller than printed p-value"

	Augmented Dickey-Fuller Test

data:  train$diff_model
Dickey-Fuller = -8.517, Lag order = 11, p-value = 0.01
alternative hypothesis: stationary

Since we have a stationary time series we can apply the Box-Jenkins framework. Our goal here is to fit an $ARMA(p,q)$ model and use our data to estimate $p$ and $q$. We begin by analyzing the ACF and PACF plots to get an idea of the nature of the data. We see the ACF decay much quicker but notice that it does not cut off distinctly anywhere; a strong indicator of an autoregressive component. Likewise, the PACF cuts off at lag 3, indicating the order of the AR term could be 3. However, since we are most likely looking at a mixed model, we will employ the extended ACF to indicate feasible models.

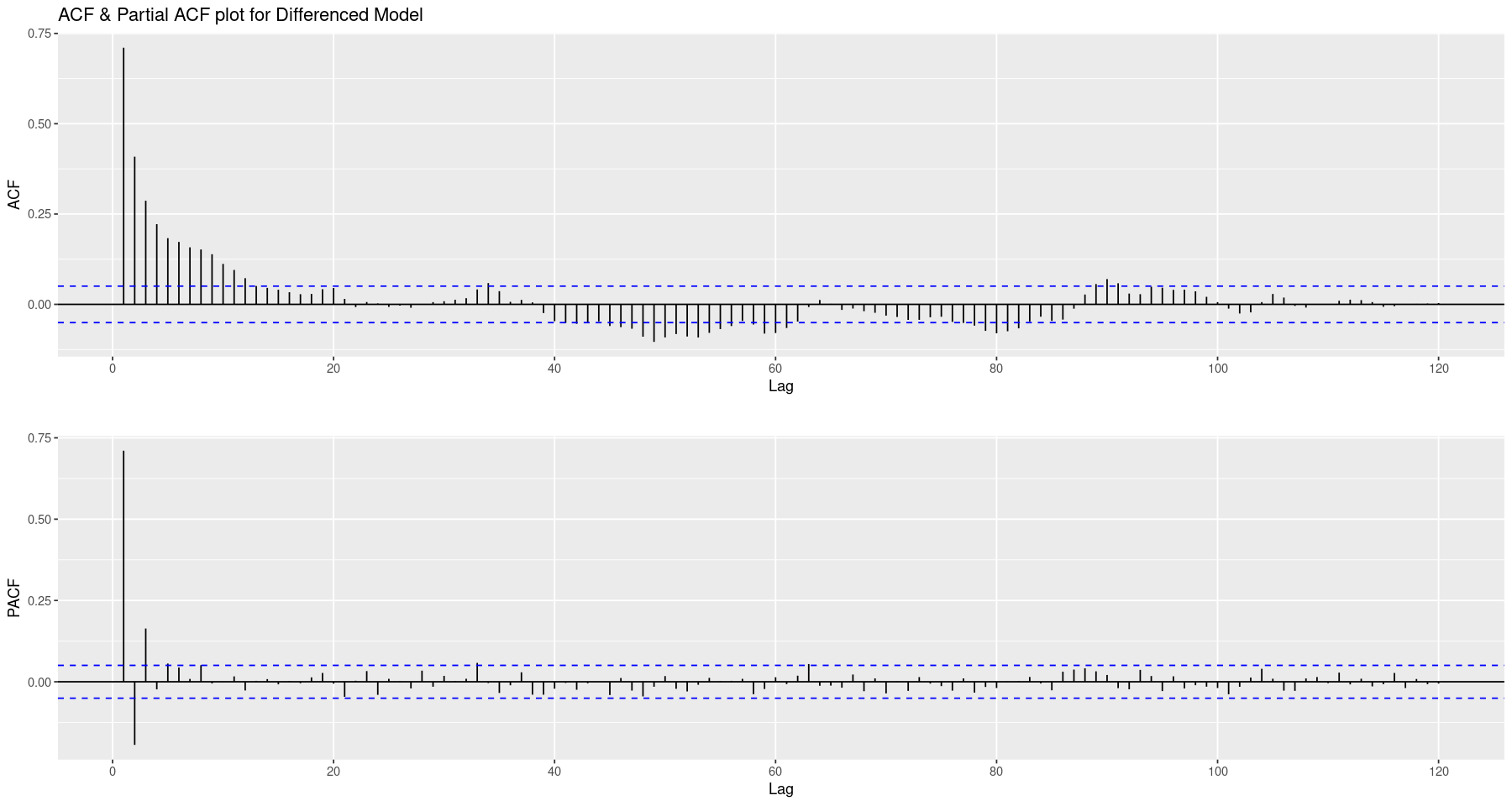

acf <- ggAcf(train$diff_model, lag.max=120) + ggtitle('ACF & Partial ACF plot for Differenced Model')
pacf <- ggPacf(train$diff_model, lag.max=120) + ggtitle('')
grid.arrange(acf, pacf, nrow=2)

png

eacf(train$diff_model, ar.max=5, ma.max=5)
# o is feasible
# x is not feasible

AR/MA
1 2 3 4 5
x x x x x x
x x x o o o
x x o o o o
x x x o o o
x x x x o o
x x x x o o

Above we have a chart of the Extended ACF which indicates feasible models (o). In the cell below we fit a collection of different models, record their AIC and BIC results and compare. Using both of these evaluation criteria we want to take a feasible model with the most favorable AIC and BIC results. The diagnostics of each model were also compared, however, are omitted because there are many of them. Instead we elect to model using an $ARMA(3, 3)$ process and include its diagnostics below.

# evaluate a collection of possible models
diff_model.aic <- matrix(0, 5, 5)
diff_model.bic <- matrix(0, 5, 5)
for (i in 0:4) for (j in 0:4){
    noise.fit <- arima(train$diff_model, order=c(i, 0, j), method="ML", include.mean = TRUE, optim.control = list(maxit=1000))
    diff_model.aic[i+1, j+1] <- noise.fit$aic
    diff_model.bic[i+1, j+1] <- BIC(noise.fit)
}

sort(unmatrix(diff_model.aic, byrow=FALSE))[1:10]
sort(unmatrix(diff_model.bic, byrow=FALSE))[1:10]

# diagnostics
noise.fit <- arima(train$diff_model, order=c(3, 0, 3), method="ML", include.mean = TRUE)  # ARMA(3,3) model
model.res <- residuals(noise.fit)
qqnorm(model.res)
qqline(model.res)

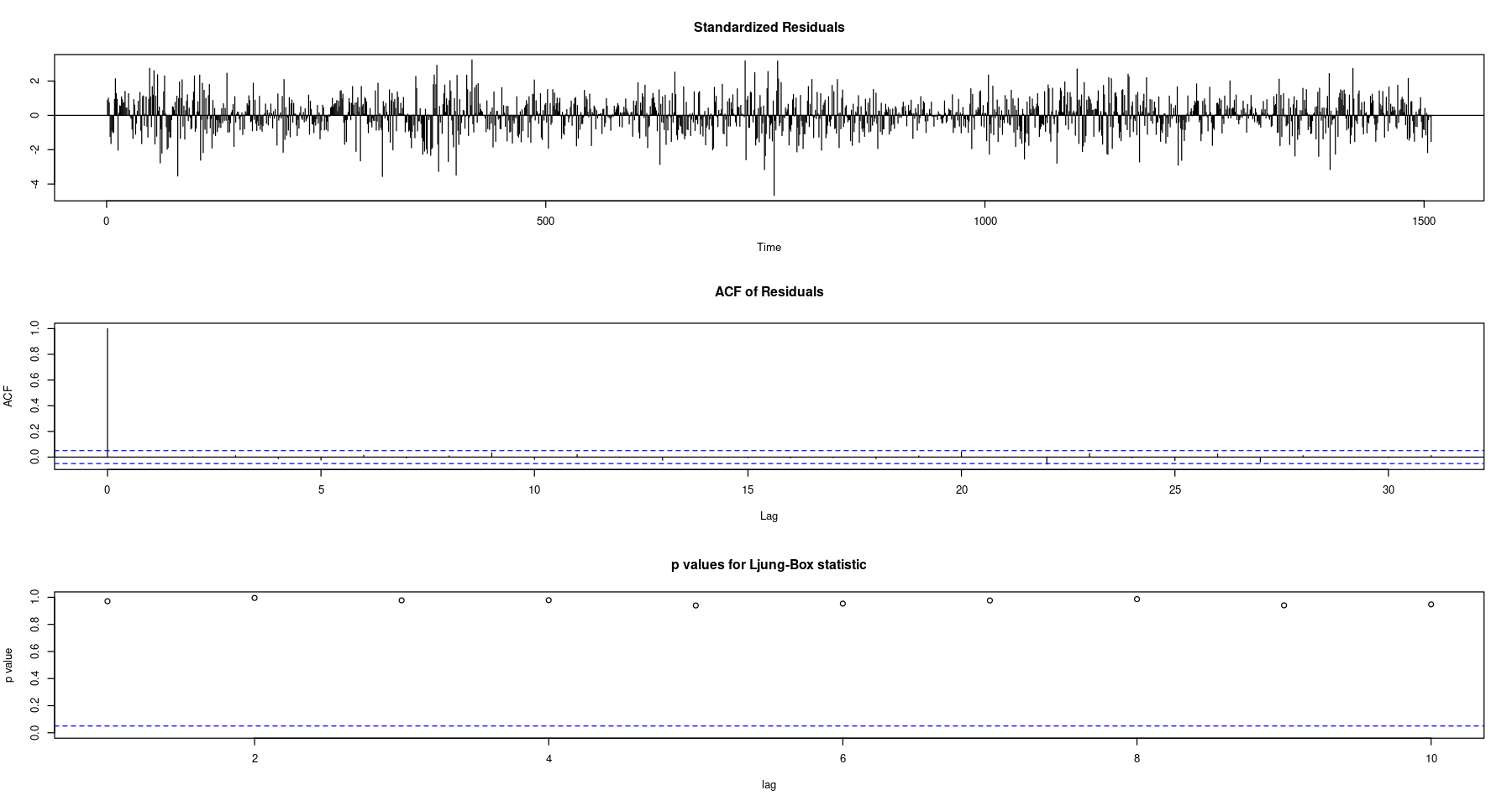

tsdiag(noise.fit)

png

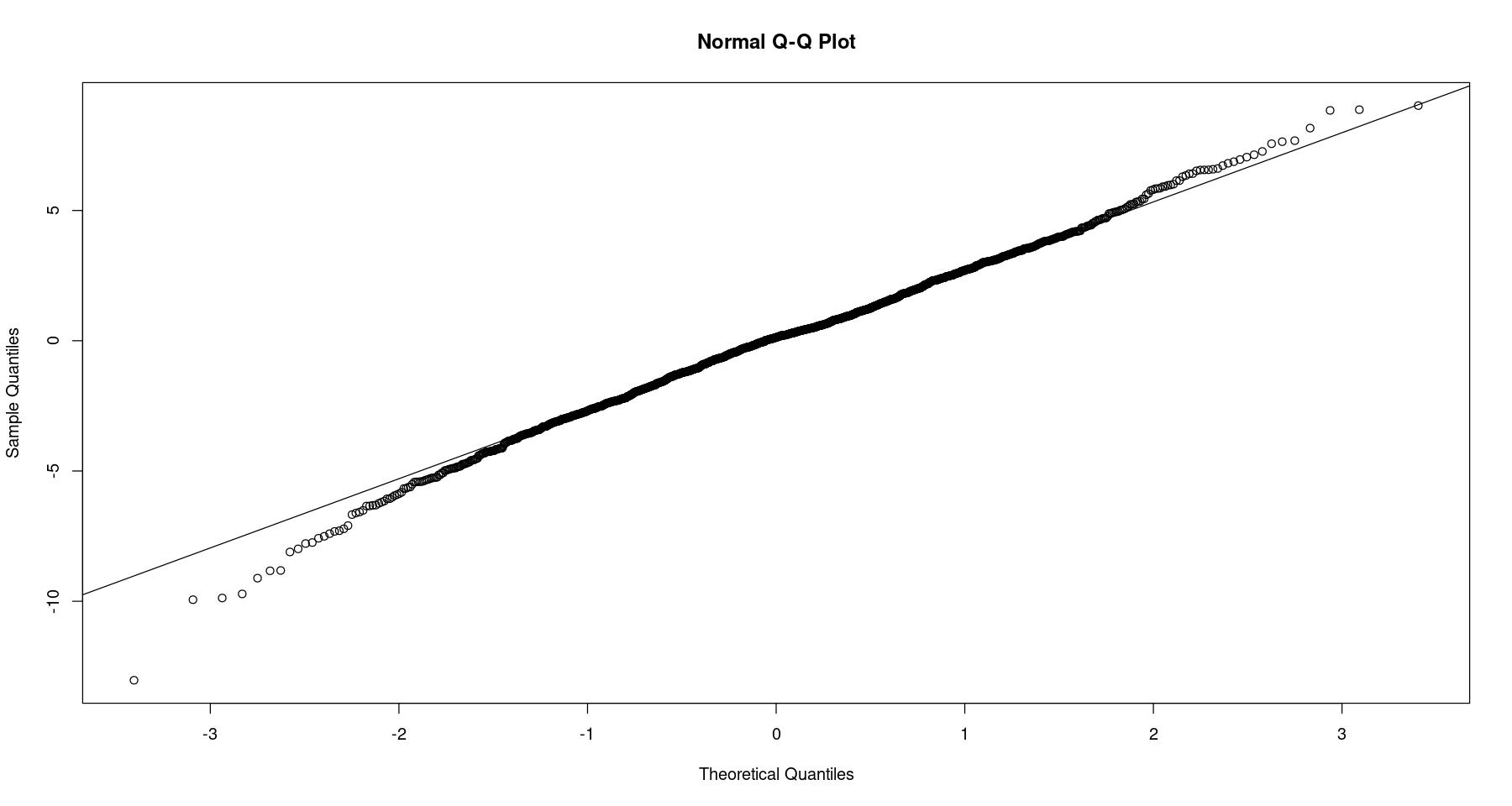

Near linearity between the theoretical and sample quantiles suggest that the errors are normally distributed. The time plot of the residuals looks like a white noise process and the ACF does not indicate any significant lags, hence are uncorrelated. We also have large p-values for the LB statistic, another strong indicator of uncorrelated errors. These are all signs that an $ARMA(3,3)$ fits the differenced time series nicely.

5. Forecasting

We are now ready to evaluate the performance of our model by forecasting the duration of the test set. Recall that our train/test split was 95/5, leaving us with an 80 day in-sample forecast period. Once forecasts are produced we evaluate accuracy with the error metric Root Mean Square Error (RMSE). Forecasting requires extending both the deterministic and stochastic portions of the time series then recombining them, essentially unwinding the differencing we did earlier.

# 1st day of test set, for time series object
test.day1 <- test[1, 1]
test.start.day <- as.numeric(strftime(test.day1, format = "%j"))
s <- '{test.day1} is the {test.start.day}th day of the year'
print(glue(s))

2021-02-17 is the 48th day of the year

test.temps.ts <- ts(test$mean.temp, start=c(2020, test.start.day), f=365.25)
new_X <- harmonic(test.temps.ts, 1) # produce new set of predictor variables
pred_X <- data.frame(new_X)
colnames(pred_X) <- c("x1", "x2")
preds <- predict(cos_model, pred_X) # predict new vals for deterministic trend
test$cos_model <- preds # extended cosine curve
test <- test[, !(names(test) %in% c('cos_mode'))]

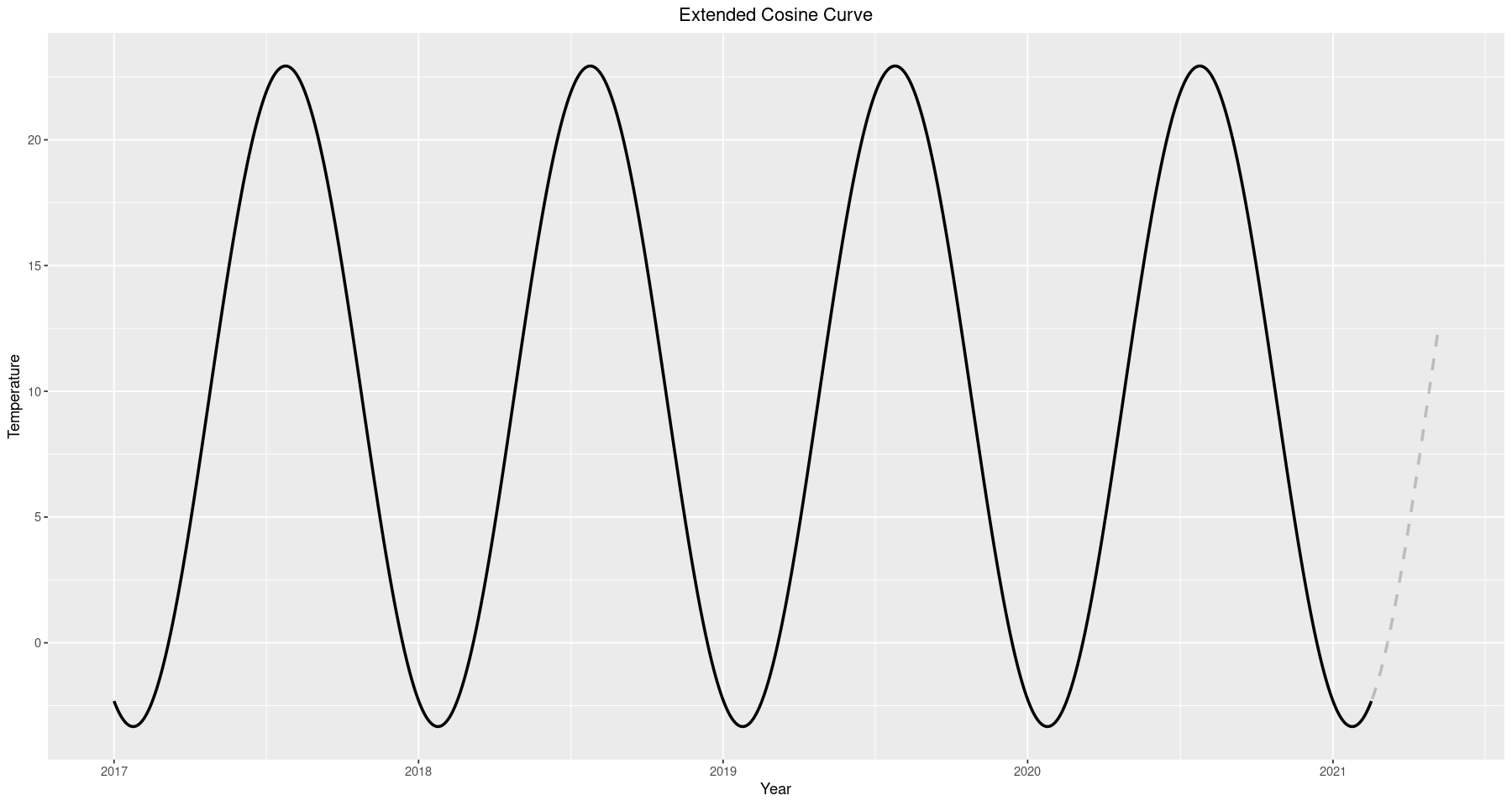

ggplot() + geom_line(data=train, aes(x=Date.Time, y=cos_model), size=1) +
           geom_line(data=test, aes(x=Date.Time, y=cos_model), size=1, alpha=0.2, linetype='dashed') +
           ggtitle('Extended Cosine Curve') +
           xlab('Year') + ylab('Temperature') +
           theme(plot.title = element_text(hjust = 0.5))

png

noise.forecast <- predict(noise.fit, 80)        # 80 days out
# keep track of error bounds
p_se <- noise.forecast$pred + noise.forecast$se # forecast + (p) standard error (se)
m_se <- noise.forecast$pred - noise.forecast$se # forecast - (m) standard error (se)

forecast.temps <- noise.forecast$pred + c(preds)        # recovered forecasts (deterministic + noise)
forecast.p.e <- forecast.temps + noise.forecast$se      # upper (+) error bound
forecast.m.e <- forecast.temps - noise.forecast$se      # lower (-) error bound

# insert them into test dataframe
test$fc <- as.double(forecast.temps)
test$forecast.p.e <- as.double(forecast.p.e)
test$forecast.m.e <- as.double(forecast.m.e)

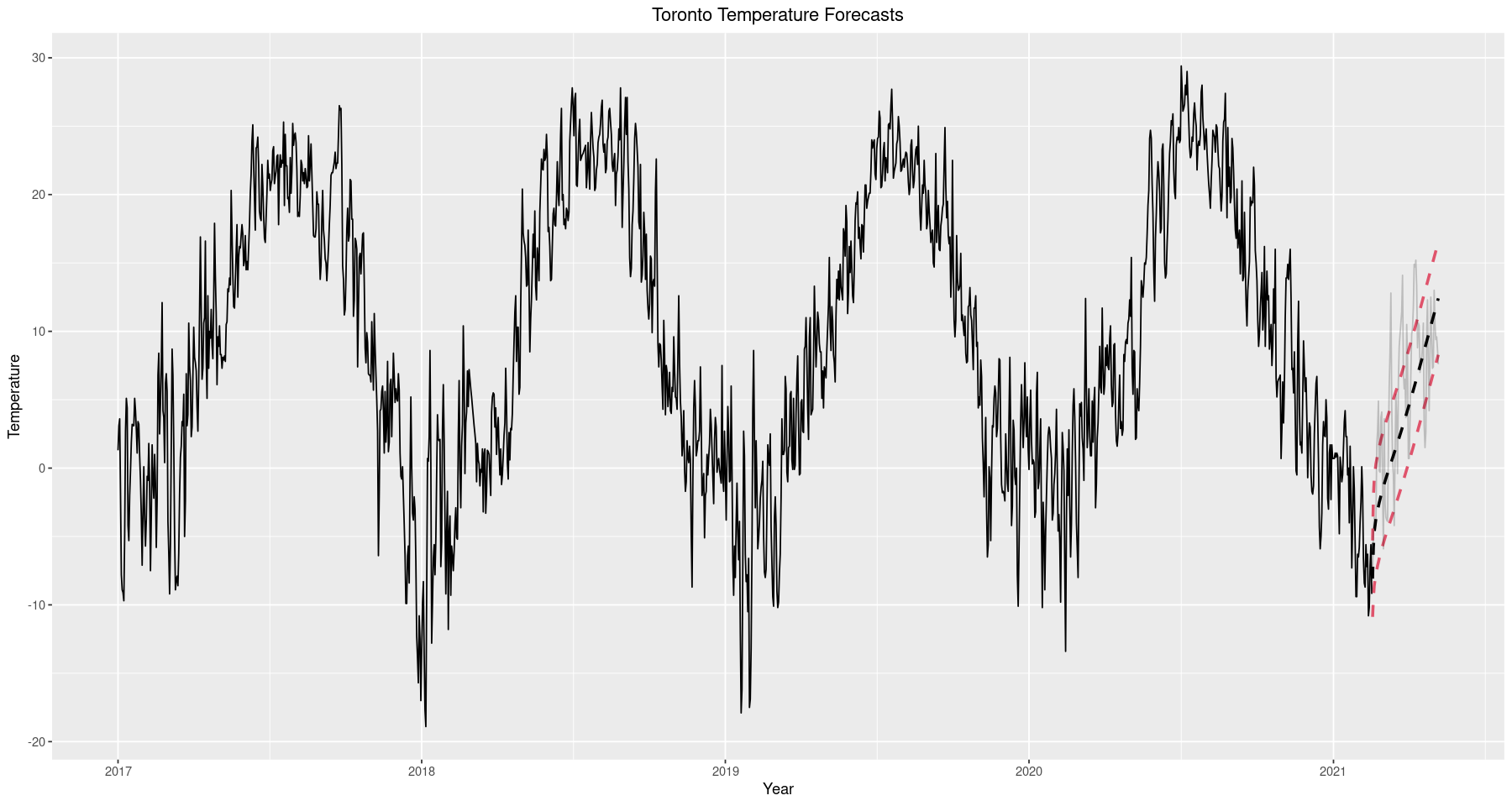

ggplot() + geom_line(data=train, aes(x=Date.Time, y=mean.temp)) +
           geom_line(data=test, aes(x=Date.Time, y=fc), size=1, alpha=1, linetype='dashed') +
           geom_line(data=test, aes(x=Date.Time, y=forecast.p.e), alpha=1, color=2, linetype='dashed', size=1) +
           geom_line(data=test, aes(x=Date.Time, y=forecast.m.e), alpha=1, color=2, linetype='dashed', size=1) +
           geom_line(data=test, aes(Date.Time, mean.temp), alpha=0.2) +
           ggtitle('Toronto Temperature Forecasts') +
           xlab('Year') + ylab('Temperature') +
           theme(plot.title = element_text(hjust = 0.5))

png

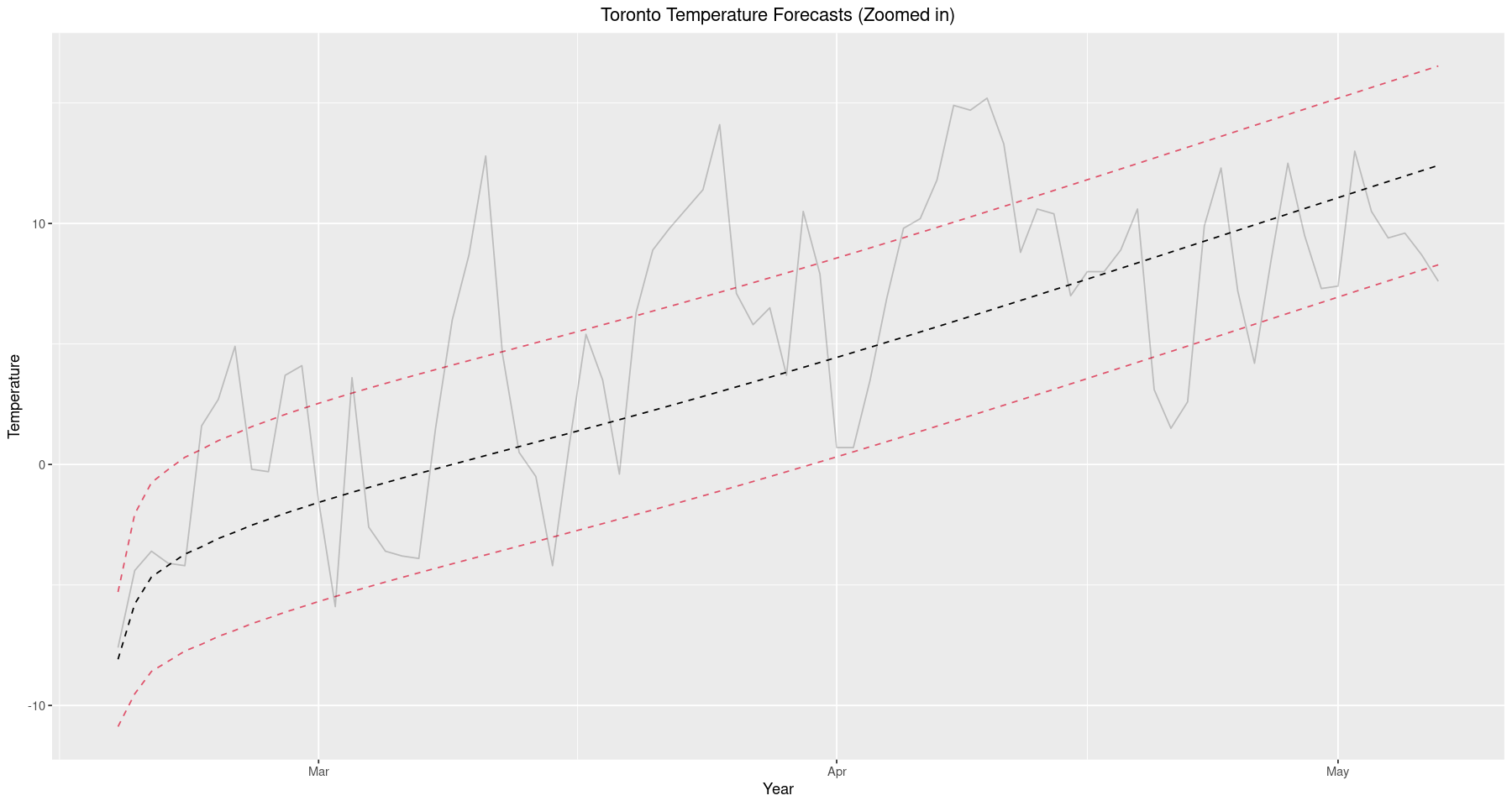

ggplot() + geom_line(data=test, aes(x=Date.Time, y=fc), linetype='dashed') +
        geom_line(data=test, aes(x=Date.Time, y=forecast.p.e), color=2, linetype='dashed') +
        geom_line(data=test, aes(x=Date.Time, y=forecast.m.e), color=2, linetype='dashed') +
        geom_line(data=test, aes(x=Date.Time, y=mean.temp), alpha=0.2) +
        ggtitle('Toronto Temperature Forecasts (Zoomed in)') +
        xlab('Year') + ylab('Temperature') +
        theme(plot.title = element_text(hjust = 0.5)) +
        labs()

png

It is important to explain exactly what criterion is used to gauge the accuracy of the model. We consider this analysis from a practical perspective and do not require exact forecast results, any prediction within a few degrees will be tolerable. Recall that root mean square error is defined as

\[RMSE = \sqrt{\frac{\sum_{i=1}^N(x_i-\hat{x}_i)^2}{N}}\]

where $x_i$ is our observed temperature at time $i$, $\hat{x}_i$ is our forecasted temperature at time $i$, and $N$ is the number of times forecasts were produced (size of the test set). RMSE was chosen due to its sensitivity to larger errors. While predictions within a few degrees are tolerable, any prediction beyond $10^\circ$ is virtually worthless and should be penalized in proportion to the discomfort it would cause a person, were they to operate according to the predicted temperature.

er <- round(sqrt(sum(((test$mean.temp - test$fc)^2)) / nrow(test)), 2) # Root Mean Square Error
s <- "RMSE: {er} Degrees Celcius"
glue(s)

‘RMSE: 4.68 Degrees Celcius’

We observe an RMSE of roughly $4.7^\circ C$ and is actually quite good, certainly within the range of tolerable differences. We should keep in mind that this is a model forecast for temperature; it has nothing to do with precipitation, wind speeds, or other parts of the weather. As such, we must evaluate its performance only in terms of temperature, we cannot expect it to advise someone to wear a rain jacket if it’s raining or sunglasses if it’s sunny. Nevertheless, temperature still plays a major role in planning for daily life and we should feel confident our model is useful in its intended purpose.

To finish up, this analysis serves as a good exercise in model fitting. We explored every major aspect of the Box-Jenkins framework in a practical situation and fit a model with good performance. The only thing to keep in mind is that the weather is a complex phenomena and to advise preparation for certain weather conditions is far more involved than advising preparation for just temperature. In any case, this is a good starting point to get into weather forecasting and provides a good foothold in exploring something as complex as numerical weather prediction.
